Build your own 12V SMF Battery Charger

DIY – 12V 7.2Ah SMF Battery Charger Circuit

Build your own 12V SMF Battery Charger

Designing the Circuit

The LM317 is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5A over an output-voltage range of 1.25 V to 37 V. It is exceptionally easy to use and requires only two external resistors, R2 and R2”  (R2= R2’+ R2”) to set the output voltage. Furthermore, both line and load regulation is better than standard fixed regulators. In addition to having higher performance than fixed regulators, this device includes on-chip current limiting thermal overload protection, and safe-operating-area protection. All overload protection remains fully functional, even if the ADJUST terminal is disconnected. By connecting a fixed resistor, Rthe ADJUST and OUTPUT terminals, the LM317 can function as a precision current regulator. An optional output capacitor can be added to improve transient response.

Schematic Diagram using LM317 & other Parts (Click to Enlarge)



The ADJUST terminal can be bypassed to achieve very high ripple-rejection ratios, which are difficult to achieve with standard three-terminal regulators. A capacitor of small value should be connected across the input pin of LM317 and ground, particularly if the regulator is not in close proximity to the power-supply filter capacitor.

Please note that the output can go no lower than 1.25 Volts.The Input voltage must be about 3 Volts above the desired Output Voltage. So input voltage should be around 18V.So a transformer with the secondary voltage of 17 V is used.

Determining the Values

Vo is calculated by following formula ,  Vo = Vref * ( 1 + R2/R1 )

Where Vo is the voltage drop across the output i.e voltage applied to the charge the battery.

Here  Vref = 1.25.Making R1 a standard value, like 220 Ohms sets the current through R2 as well. Now all we have to do is select the value of R2 to give us a voltage drop of our desired V OUT, minus the 1.25 Volts across R1.

So for Vomaximum=15 v and Vominimum=12 v we get respective values of R2minimum=1K8  and  R2maximum=2K3 which we will get by keeping R2’=1k8  and R2”=500 Ohms (variable).

The most commonly used OPAMPS are 741 and 324. IC741 is used in close loop configuration and LM324 in open loop configuration. i.e. LM324 mainly used as comparator while 741 for amplification,addition etc…

LM317 regulates the Output at 1.25 Volts above the Reference pin. Knowing this the value of this resistor sets the current through both resistors. The current drawn by the Reference pin is small and can be ignored as long as the current through the resistors is around 1 mA to 10 mA.

Testing your Circuit

Output voltage can be varied and obtained as wanted(between 12v and 15v,minimum and maximum charging voltages. Observed voltage values at INPUT ,OUTPUT and ADJUST pins is shown in table.While testing take enough precaution as not to short OUTPUT and ADJUST pins as it may damage the transistor BC 547,whose collector is connected to adjustment pin.

ADJUST OUTPUT INPUT Vref
13.7 V 12.47 V 15.01 V 1.23



The difference between voltage at output pin and adjustment pin is 1.23 (~1.25) which is the reference voltage Vref. Current rating of battery to be charged 7.2 Ah 12v, short circuit current Isc = 720mA .Using multi-meter check the short circuit current.If the Isc shows a different value than expected,it can be changed by increasing or decreasing the load connected between the emitter of the transistor T1 and ground.

Working of Charger Circuit

The circuit uses two LEDs as indicators; one for signaling charging ON condition,and the other as an indicator , when charging voltage falls below  its terminal voltage (~12 volts). Terminal voltage can be adjusted by adjusting the 1k Trimpot. The output voltage range can be adjusted by 500 ohm Trimpot. LM324 is used in comparator circuit,after the rectifier circuit. Comparator will compare the voltage levels,and if the output voltage is less than the charging voltage,the voltage across the red LED will go high thus indicating drop in charging voltage.



Diode Protection for LM317T

If the battery is connected to the charger but unplugged from the power source, you end up with the input voltage of the circuit disconnected while the output voltage is still present. Some regulators can be damaged by this, and thus diodes are put into the circuit to protect them.

Applications

SMF batteries or VRLA batteries (valve-regulated lead-acid battery) are made in an eco-friendly, ISO Certified & modern plant with a large manufacturing capacity and are being sold worldwide. There is a wide range available to suit all applications of standby power requirement’s, for example:

  1. UPS (Uninterrupted power supply)
  2.  Inverter and Emergency Lights
  3. Telecommunication equipment
  4.  Fire Alarm & Security Systems
  5.  Railway Signaling
  6. Electronic Attendance & Cash Registers
  7. Solar Lanterns and Systems,

etc. come in factory charged conditions and have a high shelf life thereby requiring longer time intervals between recharging of batteries in stock.

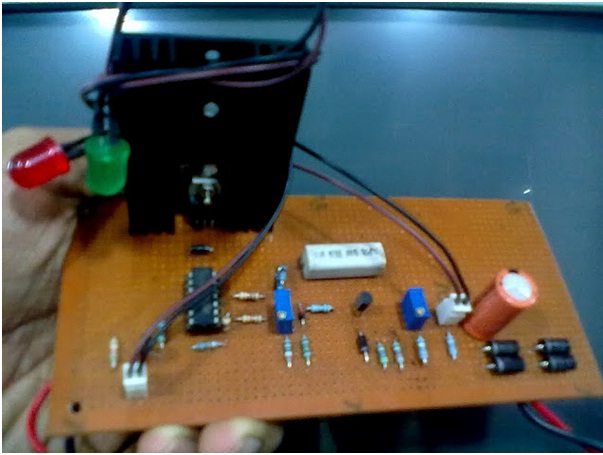

Author's Prototype Testing





Know the Designer

Deovrat Dilip Phal, Lives in Mumbai and loves to play with Analog and Power Electronics designs. He can be reached at p.deovrat@gmail.com



  • Toni

    is it a float charger?

    does your circuit lower the input voltage when the battery is fully charged?

    • No. It is a trickle charger not a float charger..

  • upul

    Mr Dilip,
    Thank you very much for the very much for the post.
    could you please mention the parts list separately since the values in the picture are not clear. Thank you.

  • mohamed

    good work,but we can not read the resistances value,can you pls. provide us by the component list? thanks in adnance

  • pavan

    if 0.7 a flows through 10 k(R6) drop going to be 10k*0.7= >>>18 v which is supply.

  • Pimmy

    Thanks for this publication, but could you please explain the value of R6 – a typo perhaps?

    Personally I’d rather avoid this resistor altogether and use a reference voltage (Zener or smth).

  • Arash

    Hi
    i think the circuit is not work because:
    R3 is low and if RV1 turned up it cause high current through RV1 and it burn
    bias of Q1 is incorrect and Base is connected to ground
    and R6 is 10k and cause to low current to battery and circuit does not work

  • Dev

    Yes indeed, R6 is a typo. I tuned it and rest works fine for me. Thanks

  • Culer

    I repeated the scheme, but do not work. Details of good PCB errors are not. Thaks

  • Prashanth

    Circuit is simple to understand. The resistor at r6 is indeed a error, but anyone with basic electronics background can rectify it. No big deal. Thanks for post!
